We manufacture STEEL GRATING
Steel Grating is manufactured by using Flat Bar and Round Bar. The Flat Bar is punched with 8mm holes and then placed side-by-side in our Automated Grating Press. Round Bar (or Transverse Bar) is inserted into the holes before the manufacturing process can begin. The Grating Press pressurizes and crimps the round bar which prevents the flat bar from moving. This process ensures permanent locking and accurate bearer bar pitching. The Flat Bar (or Bearer Bar) can be ordered with a smooth or serrated surface.
Available Gap Pitch:
Available Gap Pitch:

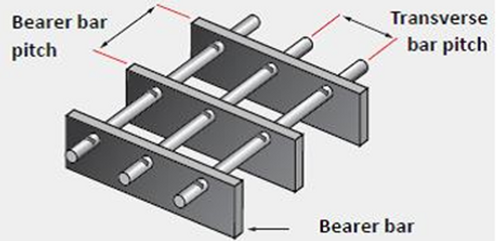

This is the gap of the opening between any 2 x flat bars and 2 x round bars
-
43/40
-
40/40
-
43/50
These are most popular, but can also be supplied in 80/40, 86/40, 43/80 and 43/100
Available Bearer Bar (Flat Bar) height:
-
25mm x 4.5mm
-
30mm x 4.5mm
-
40mm x 4.5mm
-
50mm x 4.5mm
-
60mm x 4.5mm (special order)
Transverse Bar (Round Bar) diameter:
-
7.7mm
Edge Finish
Finish/Coating:
-
Uncoated
-
Galvanized (Sans 121)
-
Bitumen
We are able to band panels on request:
-
Bars of similar thickness to the bearer bars are welded to the perimeter of the grating.
